| Model | Power (kW) | Range (nm) | Antenna Size/Type | Rotation (rpm) | |
|---|---|---|---|---|---|
|
MDS-51R | 4 | 36 | 2 ft, Radome | 24 |
|
|
MDS-52R | 4 | 48 | 3 or 4 ft, Open | 24 |
| MDS-61R | 6 | 64 | 4 or 6 ft, Open | 24 | |
| MDS-62R | 12 | 72 | 4 or 6 ft, Open | 24 | |
| MDS-63R | 25 | 96 | 4, 6 or 9 ft, Open | 24 |
| Model | LCD Display | Power (kW) | Range (nm) | Antenna Size/Type | Rotation (rpm) | |
|---|---|---|---|---|---|---|
|

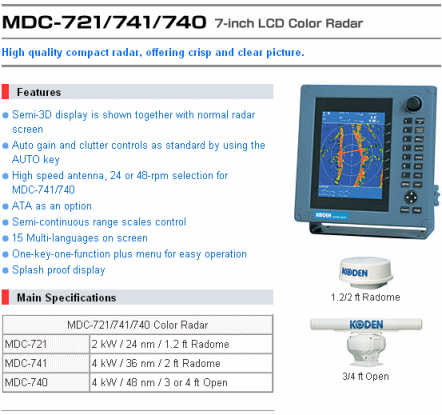

MDC-721 | 7" Color TFT | 2 | 24 | 1.2 ft, Radome | 24 |
| MDC-741 | 7" Color TFT | 4 | 36 | 2 ft, Radome | 24/48 | |
| MDC-740 | 7" Color TFT | 4 | 48 | 3 or 4 ft, Open | 24/48 | |
|

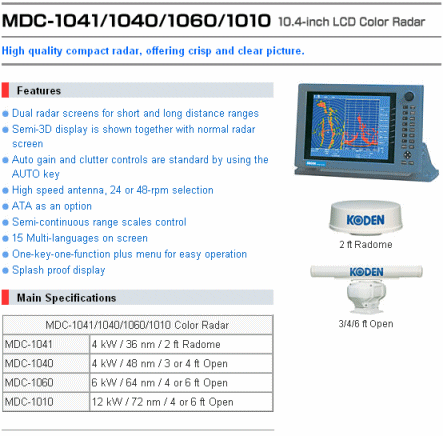

MDC-1041 | 10.4" Color TFT | 4 | 36 | 2 ft, Radome | 24/48 |
| MDC-1040 | 10.4" Color TFT | 4 | 48 | 3 or 4 ft, Open | 24/48 | |
| MDC-1060 | 10.4" Color TFT | 6 | 64 | 4 or 6 ft, Open | 24/48 | |
| MDC-1010 | 10.4" Color TFT | 12 | 72 | 4 or 6 ft, Open | 24/48 | |
|

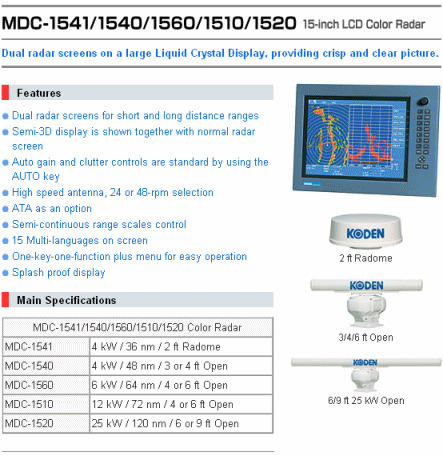

MDC-1541 | 15" Color TFT | 4 | 36 | 2 ft, Radome | 24/48 |
| MDC-1540 | 15" Color TFT | 4 | 48 | 3 or 4 ft, Open | 24/48 | |
| MDC-1560 | 15" Color TFT | 6 | 64 | 4 or 6 ft, Open | 24/48 | |
| MDC-1510 | 15" Color TFT | 12 | 72 | 4 or 6 ft, Open | 24/48 | |
| MDC-1520 | 15" Color TFT | 25 | 96 | 4, 6 or 9 ft, Open | 24/48 | |
|
MDC-1810 | 18" Color TFT | 12 | 72 | 4 or 6 ft, Open | 24 |
| MDC-1820 | 18" Color TFT | 25 | 96 | 4 or 6 ft, Open | 24 | |

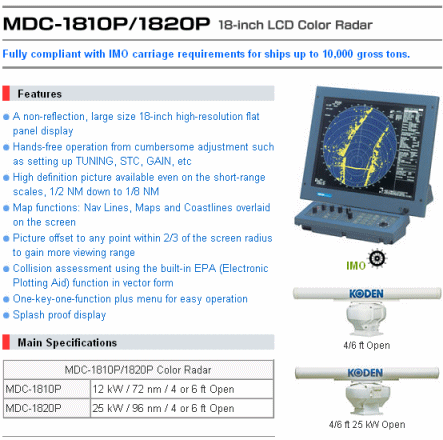

| MDC-1810P | 18" Color TFT | 12 | 72 | 4 or 6 ft, Open | 24 | |
| MDC-1820P | 18" Color TFT | 25 | 96 | 4 or 6 ft, Open | 24 |
| Model | Display | Power (kW) | Range (nm) | Antenna Size/Type | Rotation (rpm) | |
|---|---|---|---|---|---|---|
|
MDC-1860BB | Any size/type with SXGA | 6 | 64 | 4 or 6 ft, Open | 24 |
| MDC-1810BB | Any size/type with SXGA | 12 | 72 | 4 or 6 ft, Open | 24 | |
| MDC-1820BB | Any size/type with SXGA | 25 | 96 | 4 or 6 ft, Open | 24 | |
| MDC-1841BB | Any size/type with SXGA | 4 | 36 | 2 ft, Radome | 24 | |
| MDC-1840BB | Any size/type with SXGA | 4 | 48 | 4 or 6 ft, Open | 24 | |
|

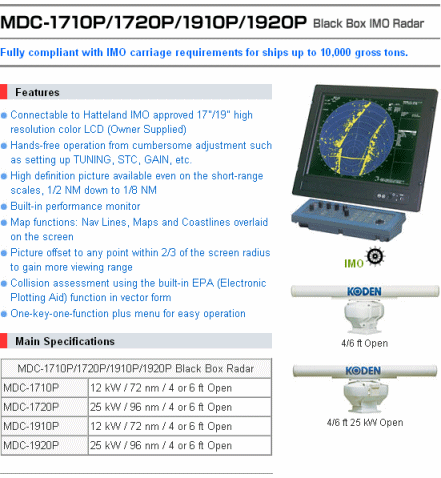

MDC-1710P | IMO approved 17" color LCD (Owner Supplied) | 12 | 72 | 4 or 6 ft, Open | 24 |
| MDC-1720P | MO approved 17" color LCD (Owner Supplied) | 25 | 96 | 4 or 6 ft, Open | 25 | |
| MDC-1910P | MO approved 19" color LCD (Owner Supplied) | 12 | 72 | 4 or 6 ft, Open | 24 | |
| MDC-1920P | MO approved 19" color LCD (Owner Supplied) | 25 | 96 | 4 or 6 ft, Open | 25 |
| Model | LCD Display | Radar Function | Plotter Function | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Power (kW) | Range (NM) | Antenna Size/Type | Rotation (rpm) | Chart Type | Track Points | Waypoints | Routes | |||
 |
MDP-621 | 7" Color TFT | 2 | 24 | 1.2 ft, Radome | 24 | C-Map NT+ | 7,000 | 8,300 | 50 |
| MDP-641 | 7" Color TFT | 4 | 36 | 2 ft, Radome | 24/48 | C-Map NT+ | 7,000 | 8,300 | 50 | |
| MDP-640 | 7" Color TFT | 4 | 48 | 3 or 4 ft, Open | 24/48 | C-Map NT+ | 7,000 | 8,300 | 50 | |
 |
MDP-1241 | 10.4" Color TFT | 4 | 36 | 2 ft, Radome | 24/48 | C-Map NT+ | 7,000 | 8,300 | 50 |
| MDP-1240 | 10.4" Color TFT | 4 | 48 | 3 or 4 ft, Open | 24/48 | C-Map NT+ | 7,000 | 8,300 | 50 | |
| MDP-1260 | 10.4" Color TFT | 6 | 64 | 4 or 6 ft, Open | 24/48 | C-Map NT+ | 7,000 | 8,300 | 50 | |
| MDP-1210 | 10.4" Color TFT | 12 | 72 | 4 or 6 ft, Open | 24/48 | C-Map NT+ | 7,000 | 8,300 | 50 | |
| Model | Type | Receiving Channel | Waypoints | Event Memories | |
|---|---|---|---|---|---|
|
KGP-913 | GPS Navigator | 11-ch Parallel/Sequential | 200 | 200 |
| KGP-913D | DGPS Navigator with built-in Beacon Receiver | 11-ch Parallel/Sequential | 200 | 200 |
|
|
KGP-920 | GPS Navigator | 18-ch Parallel/Sequential | 200 | 200 |
|
GPS-20A | GPS Receiver Module (WAAS/EGNOS Ready) | 18-ch Parallel | --- | --- |
|
KBG-2 | DGPS Receiver Module | 11-ch Parallel/Sequential | --- | --- |
| Model | LCD Display | Chart Type | Track Colors | Mark Points | Plots Storage | |
|---|---|---|---|---|---|---|
|
Gtd-110 | 10.4" Color TFT | C-Map NT+ | 7 | 8,300 | 49,000 |
|
|
Gtd-150 | 15" Color TFT | C-Map NT+ | 7 | 8,300 | 49,000 |
| Model | Type | Receiving Channel | Receiver Type | Max Update Rate | |
|---|---|---|---|---|---|
|
|
Vector PRO | GPS Compass (WAAS/EGNOS and Beacon Ready) | 12-ch Parallel | LI, C/A Code with Carrier Phase Smoothing | Position 5 Hz Heading 10 Hz |
 |
Vector PRO | GPS Compass (WAAS/EGNOS and Beacon Ready) | 9-ch Parallel | LI, C/A Code with Carrier Phase Smoothing | Accuracy: 1° rms Resolution: 0.1° |
| Model | LCD Display | Resolution | Power | Single/Dual | Frequency (kHz) | |
|---|---|---|---|---|---|---|
 |
CVS-118 | 5.6" Color TFT | 320 x 234 | 300 W | Dual | 50/200 |
 |

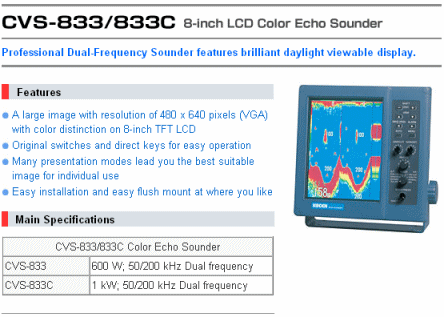

CVS-833 (Nieuw) |
6.5" Color TFT | 320 x 234 | 600 W | Dual | 50/200 |
|
|
CVS-833C (Nieuw) |
6.5" Color TFT | 320 x 234 | 1 kW | Dual | 50/200 |
 |

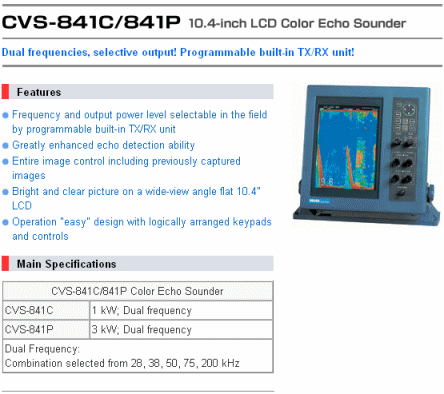

CVS-841C | 10.4" Color TFT (Vertical) | 480 x 640 | 1 kW | Dual | 28, 38, 50, 75, 200 |
| CVS-841P | 10.4" Color TFT (Vertical) | 480 x 640 | 3 kW | Dual | 28, 38, 50, 75, 200 | |
 |

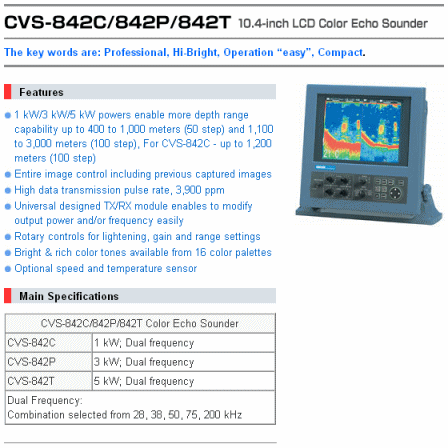

CVS-842C | 10.4" Color TFT | 640 x 480 | 1 kW | Dual | 28, 50, 75, 200 |
| CVS-842P | 10.4" Color TFT | 640 x 480 | 3 kW | Dual | 28, 50, 75, 200 | |
| CVS-842T | 10.4" Color TFT | 640 x 480 | 5 kW | Dual | 28, 50, 75, 200 | |
 |

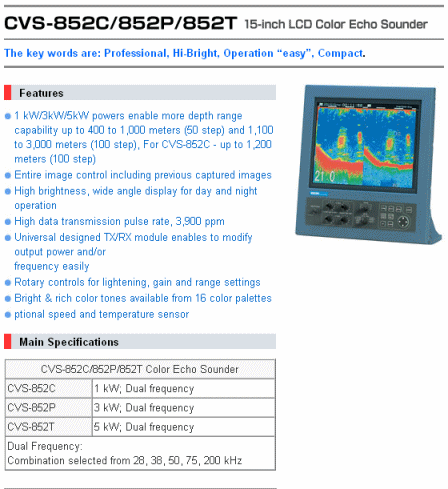

CVS-852C | 15" Color TFT | 640 x 480 | 1 kW | Dual | 28, 50, 75, 200 |
| CVS-852P | 15" Color TFT | 640 x 480 | 3 kW | Dual | 28, 50, 75, 200 | |
| CVS-852T | 15" Color TFT | 640 x 480 | 5 kW | Dual | 28, 50, 75, 200 |
| Model | CRT Display | Resolution | Power | Single/Dual | Frequency (kHz) | |
|---|---|---|---|---|---|---|
 |
CVS-8841 | 10" Color | 320 x 240 | 600 W | Single | 50, 120, 200 |
| CVS-8841C | 10" Color | 320 x 240 | 1 kW | Single | 28, 40, 50, 70, 75, 200 | |
| CVS-8841P | 10" Color | 320 x 240 | 3 kW | Single | 28, 40, 50, 70, 75, 120, 200 | |
| CVS-8842 | 10" Color | 320 x 240 | 600 W | Dual | 5/200 | |
| CVS-8842C | 10" Color | 320 x 240 | 1 kW | Dual | 28, 40, 50, 70, 75, 200 | |
| CVS-8842P | 10" Color | 320 x 240 | 3 kW | Dual | 28, 40, 50, 70, 75, 120, 200 |
| Model | LCD Display | Mode | Power | Frequency (kHz) | |
|---|---|---|---|---|---|
 |

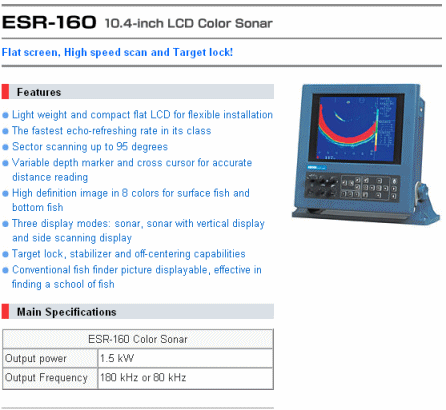

ESR-160 | 10.4" Color TFT | Sonar, Vertical Display, Side Scanning Display | 1.5 kW | 80 or 180 |
 |

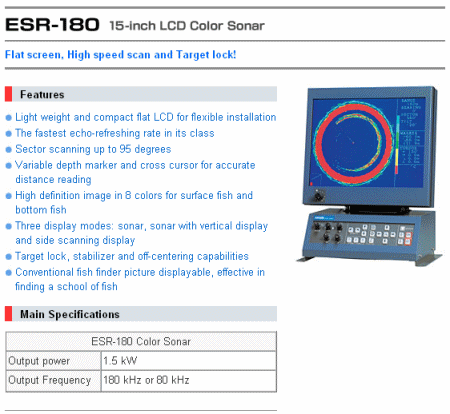

ESR-180 | 15" Color TFT | Sonar, Vertical Display, Side Scanning Display | 1.5 kW | 80 or 180 |
| Model | LCD Display | Resolution | Radar Sensor | GPS/DGPS | Fish Finder Module (Option) | Chart Type | |
|---|---|---|---|---|---|---|---|
 |
GENESIS MU-10 |
10.4" Color TFT | 640 x 480 | MDS-1, MDS-21 or MDS-22 | GPS-10A or KBG-2 | 600 W, 50/200 kHz | C-Map NT+ |
